| Interface Characteristics |

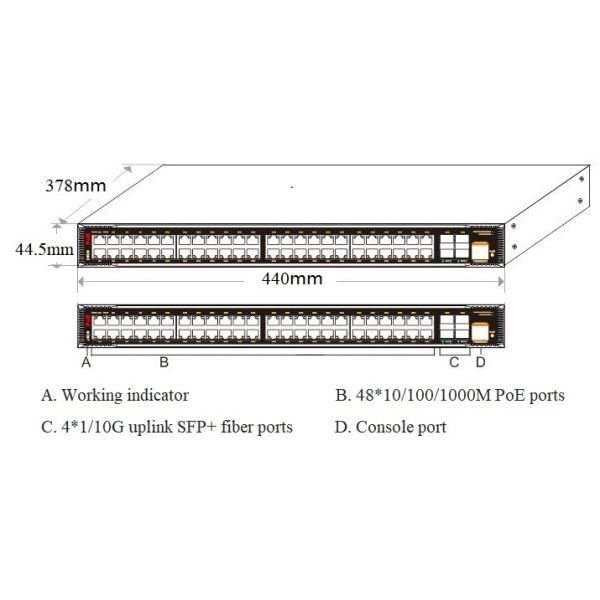

Fixed Port: 2×AC100-240V input ports, 1×Console port (115200, N, 8,1), 4×1/10G uplink SFP+ fiber ports (Data), 48×10/100/1000Base-T PoE ports (Data/Power), 1 set DC44-57V input ports (support reverse polarity protection)
Ethernet Port: Port 1-48 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission: 10BASE-T: Cat3,4,5 UTP (≤100m), 100BASE-TX: Cat5 or later UTP (≤100m), 1000BASE-T: Cat5e or later UTP (≤100m)
Optical Fiber Port: 1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module. LC)
Optical Cable/Distance: Multi-mode: 850nm/0-550m, 850nm/0-300m(10G), Single-mode: 1310nm/0-40km, 1550nm/0-120km |
| Certification & Warranty |
Lightning Protection: IEC61000-4-3(RS):10V/m (80~1000MHz), FCC Part 15/CISPR22 (EN55022): Class A, IEC61000-6-2 (Common Industrial Standard), IEC61000-4-9 (Pulsed magnet field): 1000A/m, IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz, IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV, Protection level: IP30, Lightning protection: 6KV 8/20us, IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV, IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s, IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge, IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz), IEC61000-4-8 (Power frequency magnetic field):100A/m,1000A/m,1-3s, IEC61000-4-5(Surge): Power cable: CM±4kV/DM±2kV, Data cable: ±4kV
Mechanical Properties: IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification: CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty: 5 years, lifelong maintenance. |
| Network Management Feature |
Interface: No connection port automatic sleep, Port green Ethernet Energy-saving setting, Broadcast storm control based on port speed, SFP+ optical port DDMI real-time digital diagnosis, Port temperature protection setting, IEEE802.3x flow control (Full-duplex), The speed limit of the message flow in the access port, mini particle size is 64Kbps.
L3 Routing: IPV4 Equal Cost Routing NG protocol max 1000 entries, ARP protocol max 1000 entries, IPV4/IPV6 VRRP max group is 255, Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6, IPV4/IPV6 VLANIF interface supports up to 128, IPV4/IPV6 static route/default route supports up to 128 entries, L3 network management function, IPV4/IPV6 dual-stack management, IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries, IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries, L3 routing and forwarding, support communication between different network segments and different VLAN
VLAN: Voice VLAN, QinQ configuration, IEEE802.1q VLAN based on MAC, VLAN based on the protocol, 4K VLAN based on port, Port configuration of Access, Trunk, Hybrid.
Port Aggregation: LACP, Static aggregation, Max 26 aggregation groups and 8 ports per group.
Spanning Tree: STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Ring Network Protocol: G.8032 (ERPS), Recovery time less than 20ms. 250 Ring at most, Max 250 devices per ring.
Multicast: MLD Snooping, Multicast VLAN, Fast log out, IGMP Snooping v1/v2, Max 1024 multicast groups
Port Mirroring: Bidirectional data mirroring based on port
QoS: Flow-based redirection, Flow-based rate limiting, Flow-based packet filtering, Priority Mark/Remark, 8×Output queues of each port, 802.1p/DSCP priority mapping, Queue Scheduling Algorithm (SP, WRR, SP+WRR), Diff-Serv QoS
ACL: Port-based Issuing ACL, ACL based on port and VLAN, L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.
Security: ARP message rate limiting function, Port broadcast message suppression, SSL ensures data transmission security, AAA& RADIUS& TACACS+ certification, Limit the number of MAC addresses learned, Port isolation, Host data backup mechanism, Anti-DoS attack, ARP intrusion detection function, Quadruple binding function of IP+MAC+VLAN+port, IP source address protection, MAC address black hole, User hierarchical management and password protection, SSH 2.0 provides a secure encrypted channel for user login, IEEE802.1X authentication/ centralized MAC address authentication
DHCP: DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay
Management: System work log, Link Layer Discovery Protocol, NTP clock, Cable length detection, SNMP V1/V2C/V3, Ping detection, Web network management (HTTPS), ONV-NMS platform cluster management (LLDP+SNMP), One click recovery, View CPU real-time utilization status, FTP, TFTP, Xmodem, and SFTP file upload and download management, Console/ AUX Modem/ Telnet/ SSH2.0 CLI command line configuration
System: Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable, TCP/IP, network adapter, and network operating system (such as Linux, Mac OS X) installed on each computer in the network, Cat5 and above Ethernet cable |
